SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Feature: LUMINOVA
Display Type: DIGITAL
Type: Desk Clocks
Is Smart Device: no

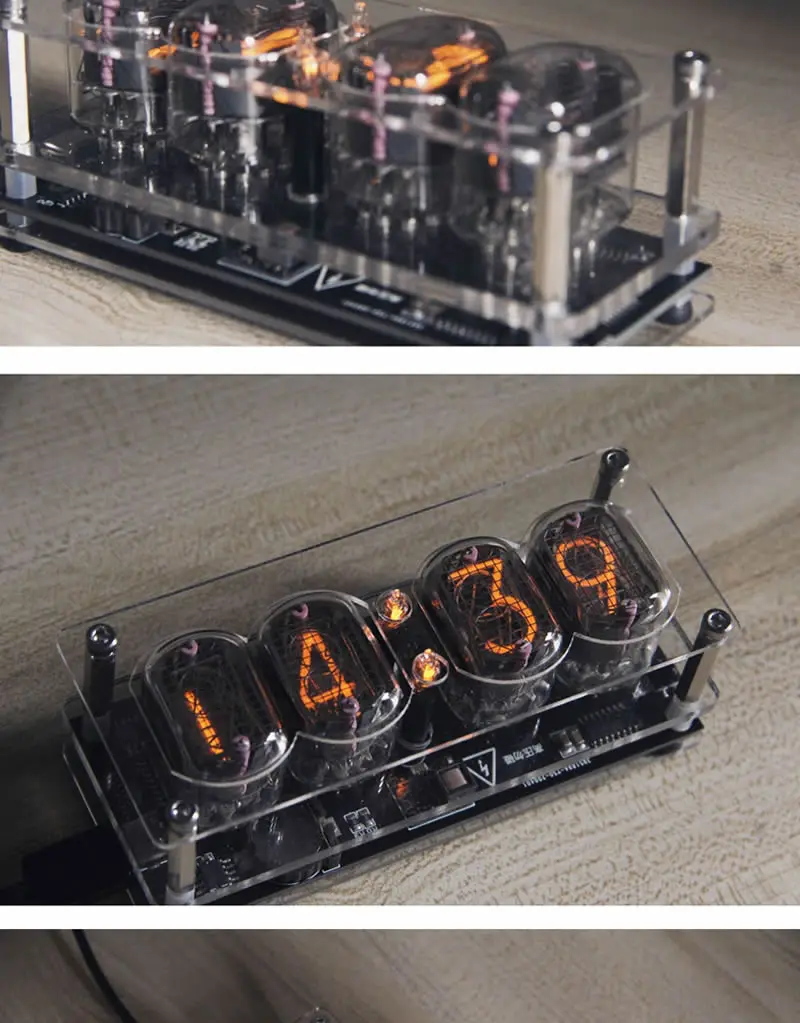

【Name】 IN12 glow tube clock
【Working voltage】DC5V USB-C interface
【Product size】 Uniform specification 114 * 46m
Features:
1. Time display hour, minute, second time display
2. Date display year, month, day date display
3. Colorful background breathing lights
4. High-precision clock built-in high-precision clock chip, the annual error is less than 1 minute.
5. Power-off memory Power-off or power-off does not affect the clock timing. There is no need to reset the time after power-on or power-on.
6. Infrared remote control is set using the matching infrared remote control
7. Anti-poisoning procedure When the cathode is lit, some substances will be radiated outwards and deposited on other unlit cathodes, making it unable to discharge normally. Under normal circumstances, if each cathode cycle lights and the lighting time is similar, then the life of the tube will be longer, so anti-poisoning program is added, and the cycle is lighted at intervals to extend the service life of the glow tube
8. Low power consumption uses a high efficiency power supply, power consumption is controlled at about 1W
9. Time switch function
User manual:
CH-: On/Off
NEXT: Switch the bottom atmosphere light color (first press 9 to set the mode and brightness)
EQ: Enter setting time mode
1: Minutes and seconds display mode
2: Time division mode
3: Display month and day
4: Show year
5: Test the glow tube
Setting time method:
1. Press FQ, the glow tube at the minute position starts to flash and enters the setting time mode.
2. By pressing + or -, the value can be changed.
3. Set the next item by continuing to press EQ. The sequence is hour-day-month-year, and finally press EQ to exit the setting mode.
Method of setting time switch:
1. Press button 6, the glow tube starts to flash, first set the minute, use + or-to change the value, press 6 again to set the hour, after setting, press button 6 again to exit the set timing boot mode.
2. Press button 7 and the glow tube starts to flicker, first set the minute, use + or-to change the value, press 7 again to set the hour, and press button 7 again after setting to exit the set timer shutdown mode.
3. The default is 00:00, which means to turn off the timing on/off, so if you want to set the 00:00 switch, please set it to 23:59 or 00:01.
Set the brightness and mode of the ambient light:
1. Press button 9, the glow tube starts to flash, use + or-to change the value, 00 is the spectrum cycle mode, O1 is the breathing light mode, 02 is the fixed mode, press the number 9 again, the left glow tube starts to flash, Use + or-to change the brightness of the ambient light, 0 means to turn off the backlight.
2. In the non-setting mode, use NXT to change the color of the atmosphere light at the bottom. For the 255-color version, you can use a long press to change the color.
Set the anti-poisoning execution time interval:
1. Press button 8 to enter the anti-poisoning execution time interval setting, press + or to set, after setting, press button 2 to exit.
